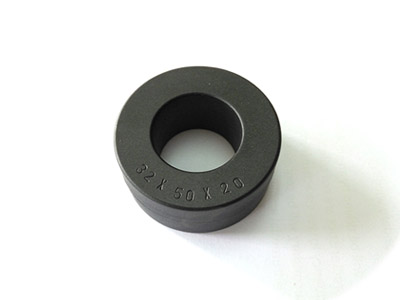

Part no. KMN503220
Application: common mode choke, EMI filter
Finished type: plastic cased
Core material: Fe-based nanocrystalline
Bare core dimensions:
OD: 50mm
ID: 32mm
HT: 20mm
Case dimenstions:
OD: 53.8mm
ID: 28.5mm
HT: 24mm
AL Value:
AL: 68.5uH Min @ 10KHz, 0.25V (u≥60000)
AL: 16.4uH MIn @ 100KHz, 0.25V (u≥12000)
