Part no. KMN402515
Application: common mode choke, EMI filter
Finished type: plastic cased
Core material: Fe-based nanocrystalline
Bare core dimensions:
OD: 40mm
ID: 25mm
HT: 15mm
Case dimenstions:
OD: 44.4mm
ID: 22.0mm
HT: 18.8mm
AL Value:
AL: 64.8uH Min @ 10KHz, 0.25V (u≥60000)
AL: 13.0uH Min @ 100KHz, 0.25V (u≥12000)
Full standard Core list of nanocrystalline cores for common mode chokes

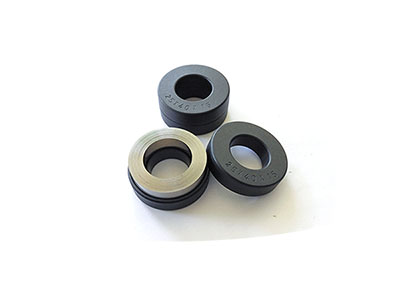

Nanocrystalline Cores for Common Mode Chokes, KMN402515 (40x25x15 toroidal nano core)
